The 12° Inclined Moving Walk is specifically designed for supermarkets, shopping centers, and other retail spaces where passengers may need to move along an inclined path. This model accommodates both pedestrians and shopping trolleys, offering a safe, convenient, and efficient solution for vertical transport in commercial environments.
Key Features & Advantages:
Inclined Transport Capability: Supports smooth movement on a 12° incline, ideal for connecting floors in retail spaces.
Trolley Friendly Design: Wider steps and reinforced load-bearing structure allow safe movement of shopping carts.
Enhanced Safety Features: Includes anti-slip surfaces, handrail sensors, and emergency stop devices to ensure user protection.
Reliable Performance: Engineered with high-quality drive systems for stable and continuous operation.
Low Maintenance & Energy Saving: Optimized design reduces wear and energy consumption, minimizing operating costs.

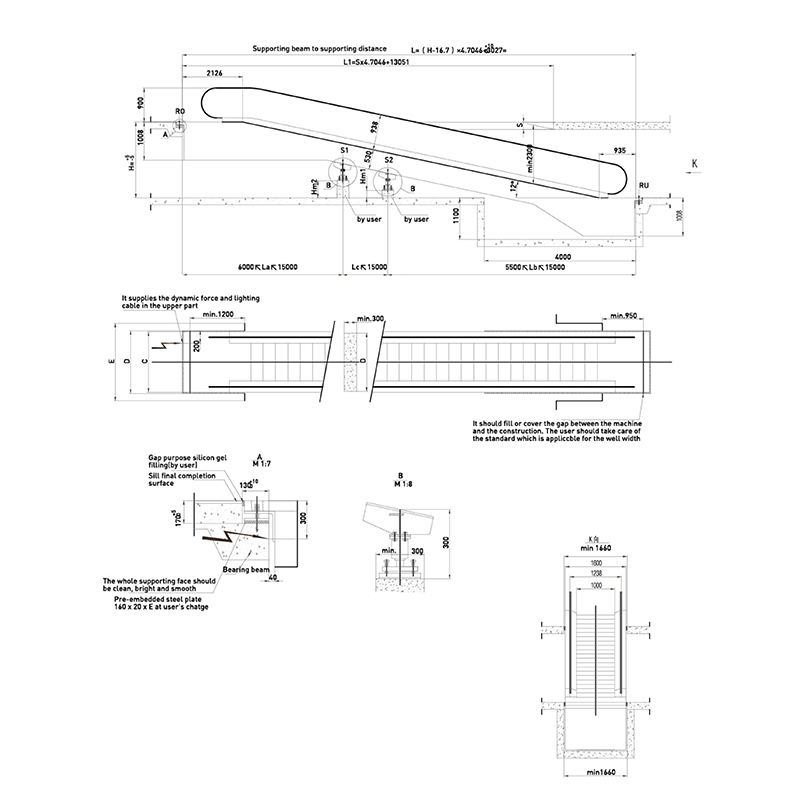

| The construction supporting force includes the viration load | |||||
| No intermediate supporting | One intermediate supporting | Tow intermediate supporting | |||
| Ro=0.0045XL+13 | Ro=0.0045XLa+13 | Ro=0.0045XLa+13 | |||
| Ru=0.0045XLb+7 | Ru=0.0045XLb+7 | ||||
| Ru=0.0045XL+7 | S1=0.00585X(La+Lb) | S1=0.00585X(La+Lc) | |||
| S2=0.00585X(Lb+Lc) | |||||
| Travelling height | Intermediate supporting | La(mm) | Lb(mm) | Lc(mm) | Intermediate supporting height | |||
| From | To | S1 | S2 | |||||
| 1601 | 2663 | - | - | - | - | - | Hm1 | 0.2126xLb−1051 |
| 2664 | 4151 | 1 | - | L−7000 | 7000 | - | ||
| 4152 | 5851 | 1 | - | 15000 | L−15000 | - | Hm2 | 0.2126x(Lb+Lc)−1066 |
| 5852 | 6000 | 1 | 1 | 15000 | 7000 | L−22000 | ||
